Horizontal Centrifugal Non-Metallic Pumps
(In M.O.C.:- PP, UHMW-PE, GFP etc.)
These pumps being used for corrosive application, utmost care is taken to reduce the number of joints and if available are sealed with TEFLON (PTFE) gaskets.
Shaft being totally encapsulated with Sleeve, it is available in various configurations.
Horizontal Centrifugal
Non-Metallic Pumps

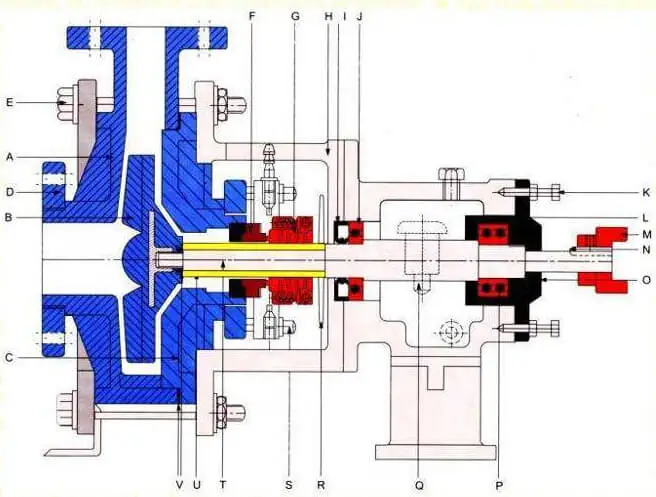

* * M.O.C. VARIES AS PER APPLICATION
| No | Oty | Part Name | Material | No | Oty | Part Name | Material |
|---|---|---|---|---|---|---|---|
| A | 01 | CASING | ** | L | 01 | BEARING | CI |
| B | 01 | IMPELLER | ** | M | 01 | COUPLING | CI |
| C | 01 | BACKPLATE | ** | N | 01 | KEY | SS-316 |
| D | 01 | SUCTION FLANGE | ** | 01 | OUTBOARD OIL SEAL | NEOPRENE | |
| E | 06 | HEX-BOLT | SS-316 | P | 01 | OUTBOARD OIL SEAL | STEEL |
| F | 01 | MATING RING | CERAMIC (99.95%) | Q | 01 | CONSTANT OIL LEVELLER | ALUMINIUM |
| G | 01 | MECHANICAL SEAL | TEFLON BELLOW | R | 01 | DEFLECTOR | PP/UHMW-PE |
| H | 01 | BEARING FRAME | CI | S | 04 | NUT | SS-316 |
| I | 01 | INBOARD OIL SEAL | NEOPRENE | T | 01 | SHAFT | EN-8/SS-316 |
| J | 01 | INBOARD BEARING | STEEL | U | 01 | SLEEVE | ** |
| K | 04 | HEX-BOLT | SS-316 | V | 01 | GASKET | PTFE |
Areas of Focus
- These pumps being used for corrosive application, utmost care is taken to reduce the number of joints and if available are sealed with TEFLON (PTFE) gaskets.
- Shaft being totally encapsulated with Sleeve, it is available in various M.O.C., such as Alloy-20, HB, HC, High Alumina Ceramic (99.95%), etc.
- Mechanical Seal plays a vital role and its improper selection can

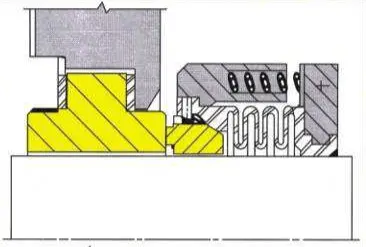

Teflon Bellow Seal with Replaceable Face
These are Externally Mounted Multi Spring Seal, even suitable for slurry application, both abrasive and non-abrasive in nature. It is available in various face combination such as GFT V/S CERAMIC, CARBON V/S CERAMIC, SIC V/S CERAMIC, SIC V/S SIC, TVS/S CERAMIC etc. It is cost effective from Inventory point of view.

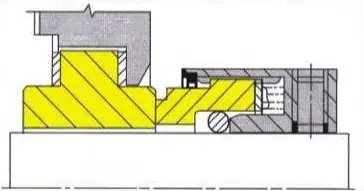

Reverse Balancing Seal
These are specially designed externally mounted seal, to sustain any amount of stuffing box pressure and is also compatible for slurry application, both abrasive and non-abrasive in nature. It is also available in various face combination.
