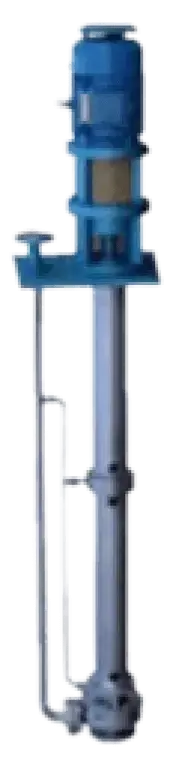

Vertical Submersible Pumps
(In M.O.C: C I, SS - 304, SS - 316, ALLOY - 20, etc)
Vertical Submersible Pumps are available with special vapour Sealing Arrangement, used for Highly Volatile, Vaporizing Liquids. Precision machining of Shafts are done with center to center, one piece shaft up to 4.5 mtrs depth. Intermediate Bush Bearing supports.....
Vertical Submersible Pumps

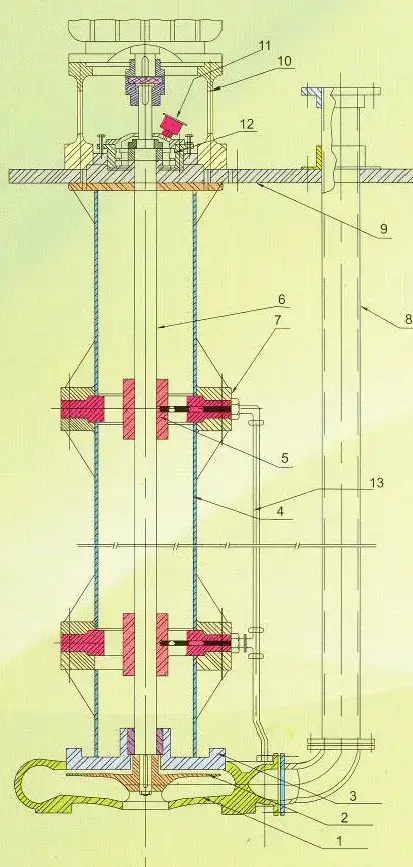

| Part No. | Qty. | Description |
|---|---|---|
| 1 | 01 | Casing |
| 2 | 01 | Impeller |
| 3 | 01 | Stuffing Box |
| 4 | 03 | Coloumn Pipe |
| 5 | 02 | Bush Bearing Support |
| 6 | 01 | Shaft |
| 7 | 01 | Coloumn Support |
| 8 | 01 | Delivery Pipe |
| 9 | 01 | Mounting Plate |
| 10 | 01 | Motor Stool |
| 11 | 01 | Gearse Cup |
| 12 | 01 | Bearing Housing |
| 13 | 01 | Flushing line |
Salient Features

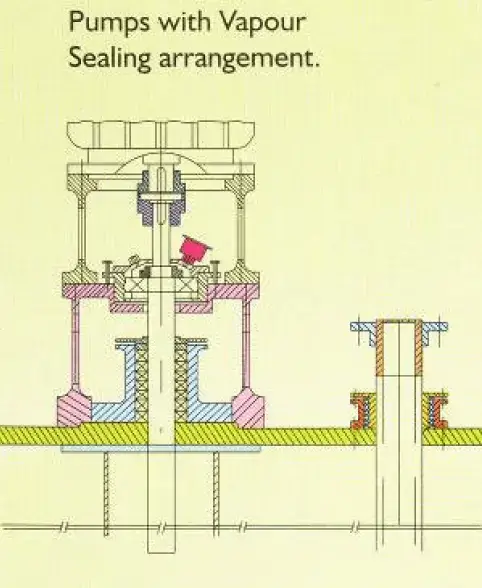

- Vertical Submersible Pumps are available with special vapour Sealing Arrangement, used for Highly Volatile, Vaporizing Liquids.
- Precision machining of Shafts are done with center to center, one piece shaft up to 4.5 mtrs depth
- Intermediate Bush Bearing supports are provided for perfect guiding of the shaft.
- Shafts are supported by Column Pipe & Intermediate Bush Bearings.
- Flushing Lines are provided for Intermediate Bush Bearings, for cooling Purpose.
- Shaft are made of robust design construction to sustain the load of the Pump& motor.
