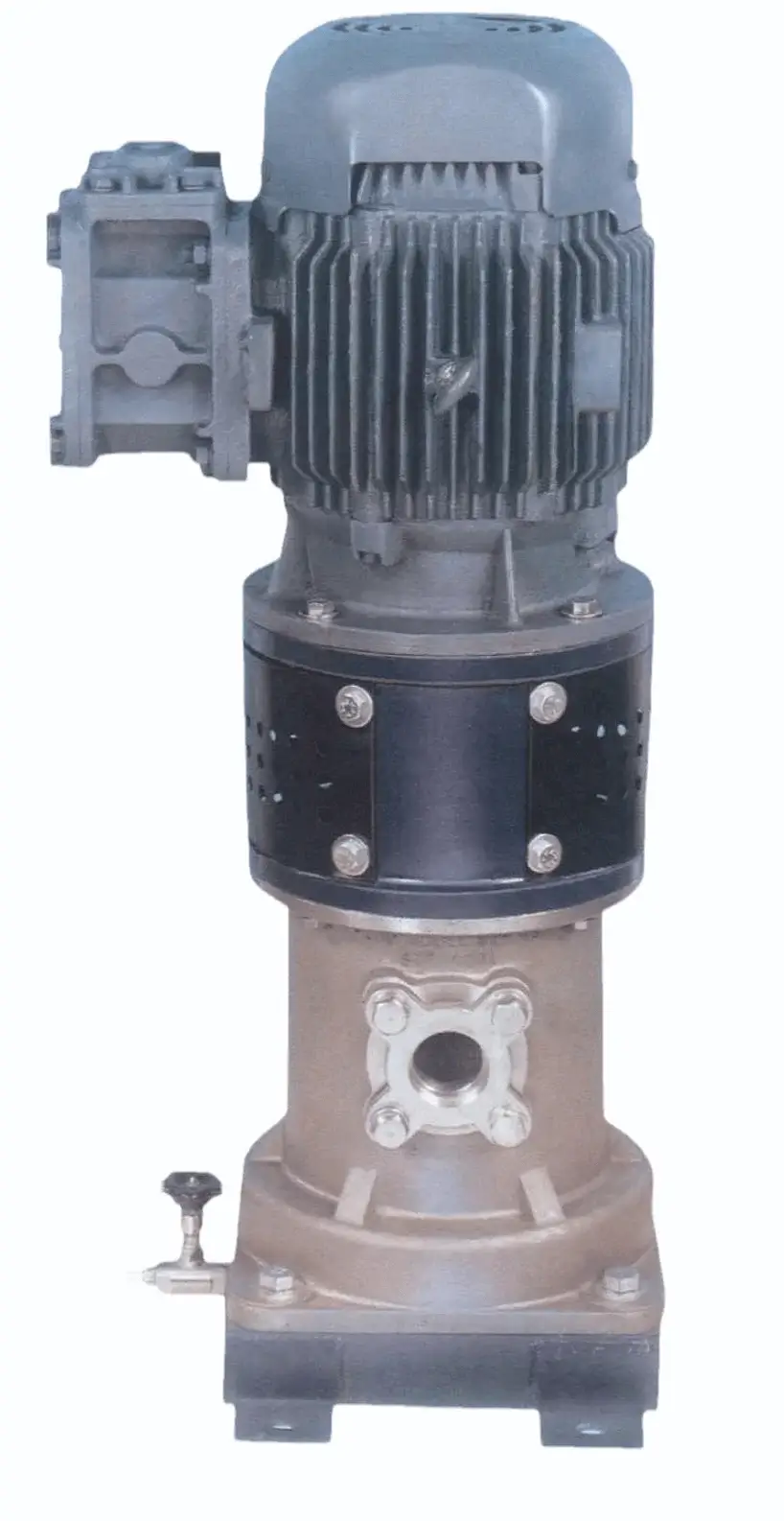

Vertical Inline Pumps
(In M.O.C:- CS, SS-304, SS-316, etc.)
Vertical inline pumps are compact centrifugal pumps with inlet and outlet on the same horizontal plane, ideal for space-saving installation in piping systems. Commonly used in HVAC, water supply, and fire protection, they offer efficient operation, easy maintenance, and direct inline installation. Their reliability and energy efficiency make them a preferred choice for consistent fluid flow and pressure.
Vertical Inline Pumps
* * M.O.C. VARIES AS PER APPLICATION

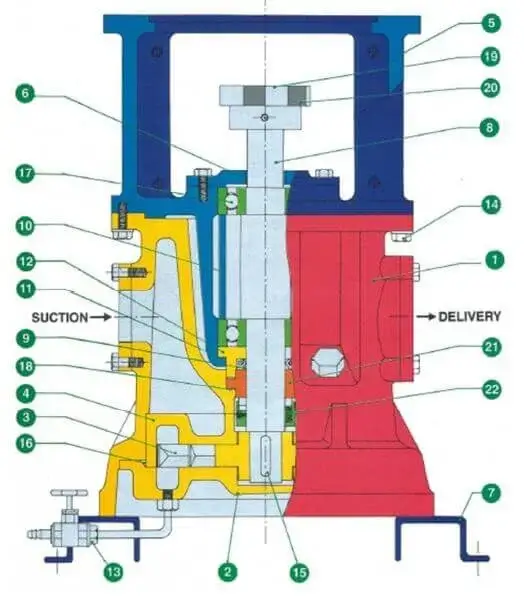

| Sr No. | Description | M.O.C. |
|---|---|---|
| 1 | Priming chamber | S.S.-316/C.I. |
| 2 | Impeller cover | S.S.316 |
| 3 | Impeller | S.S.316 |
| 4 | Impeller cage | S.S.-316 |
| 5 | Motor support | Cast iron |
| 6 | Bearing cover | Cast iron |
| 7 | Base | Steel |
| 8 | Shaft | S.S.-316 |
| 9 | Oil Seal | P.T.F.E |
| 10 | Distance bush | Steel |
| 11 | Gasket | P.T.F.E |
| 12 | Cup | S.S.-316 |
| 13 | Drain valve | S.S.-316 |
| 14 | Hardwares | S.S.-316 |
| 15 | Key | S.S.-316 |
| 16 | 'O' ring | P.T.F.E |
| 17 | Ball Bearing | Steel |
| 18 | Flat gasket | P.T.F.E |
Advantages of Vertical Inline Pumps
- Space-Saving Design: Compact with inlet and outlet on the same horizontal plane.
- Easy Installation: Direct inline installation reduces need for extensive piping modifications.
- Efficient Operation: Provides consistent fluid flow and pressure.
- Low Maintenance: Simplified design for easy maintenance.
- Versatile Applications: Ideal for HVAC, water supply, and fire protection systems.
- Reliability: Known for dependable performance.
- Energy Efficiency: Optimized for energy-saving operation.
More from us
Our other pumps

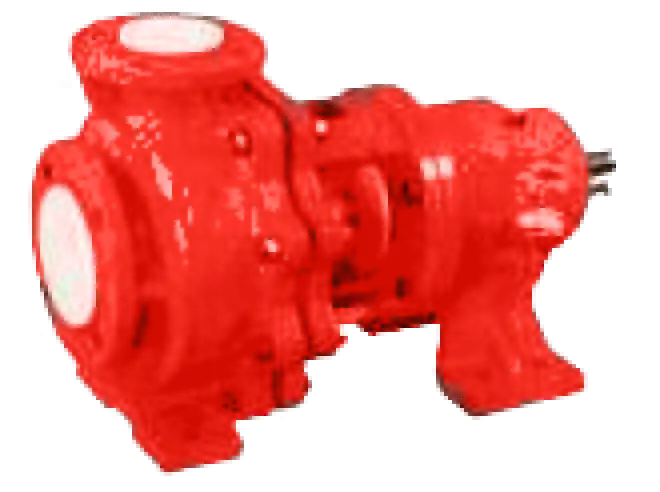

Horizontal Centrifugal
Non-Metallic Lined Pumps
The hi-tech lining process involves high pressure moulding at high temperature to ensure uniform thickness of lining free from cavities, air pockets, cold flows, etc. A unique feature...

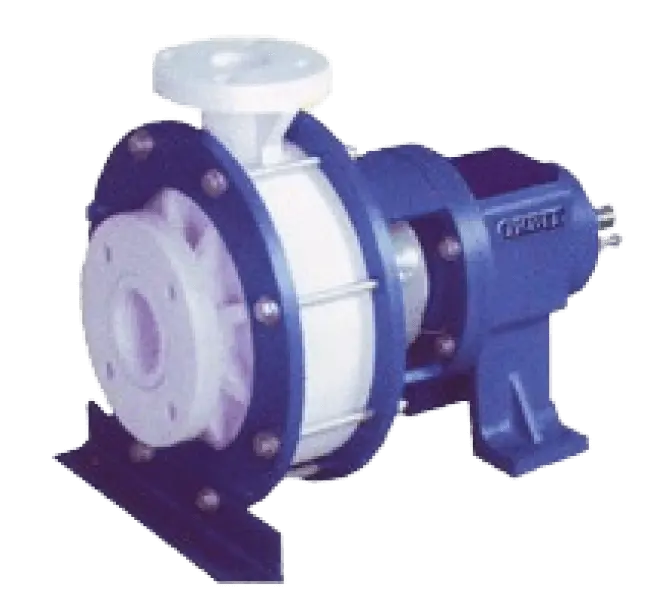

Horizontal Centrifugal
Non-Metallic Pumps
These pumps being used for corrosive application, utmost care is taken to reduce the number of joints and if available are sealed with TEFLON (PTFE) gaskets. Shaft being totally...

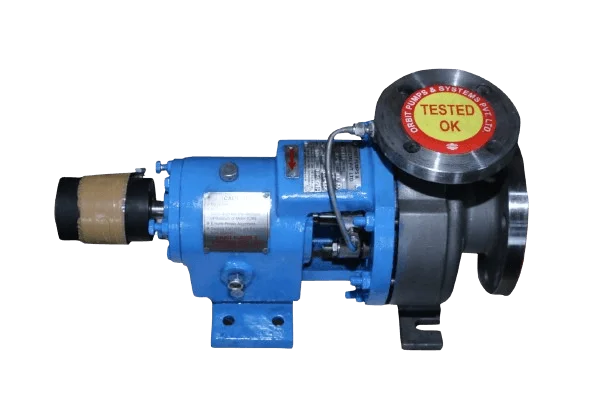

Horizontal Centrifugal
