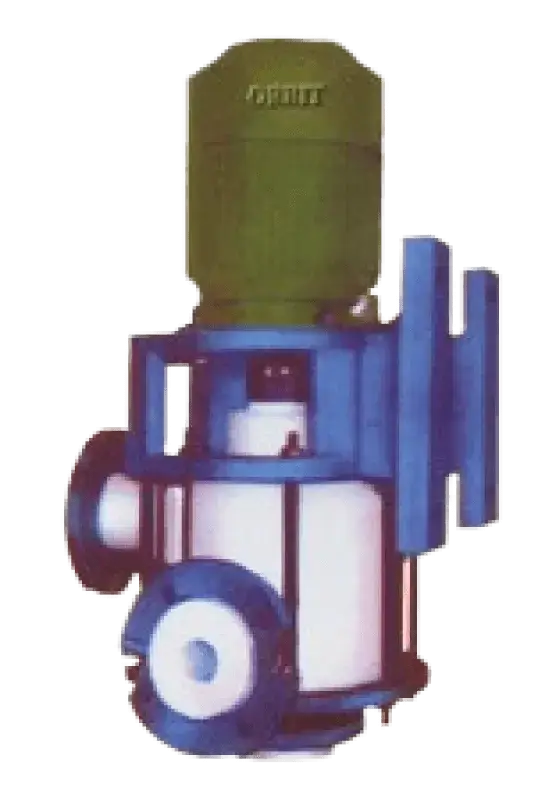

Vertical Glandless Pumps
(In M.O.C.:- PP, UHMW-PE, etc.)
These pumps being used for corrosive application, utmost care is taken to reduce the number of joints and if available are sealed with TEFLON (PTFE) gaskets.
Shaft being totally encapsulated with Sleeve, it is available in various configurations.
Vertical Glandless Pumps

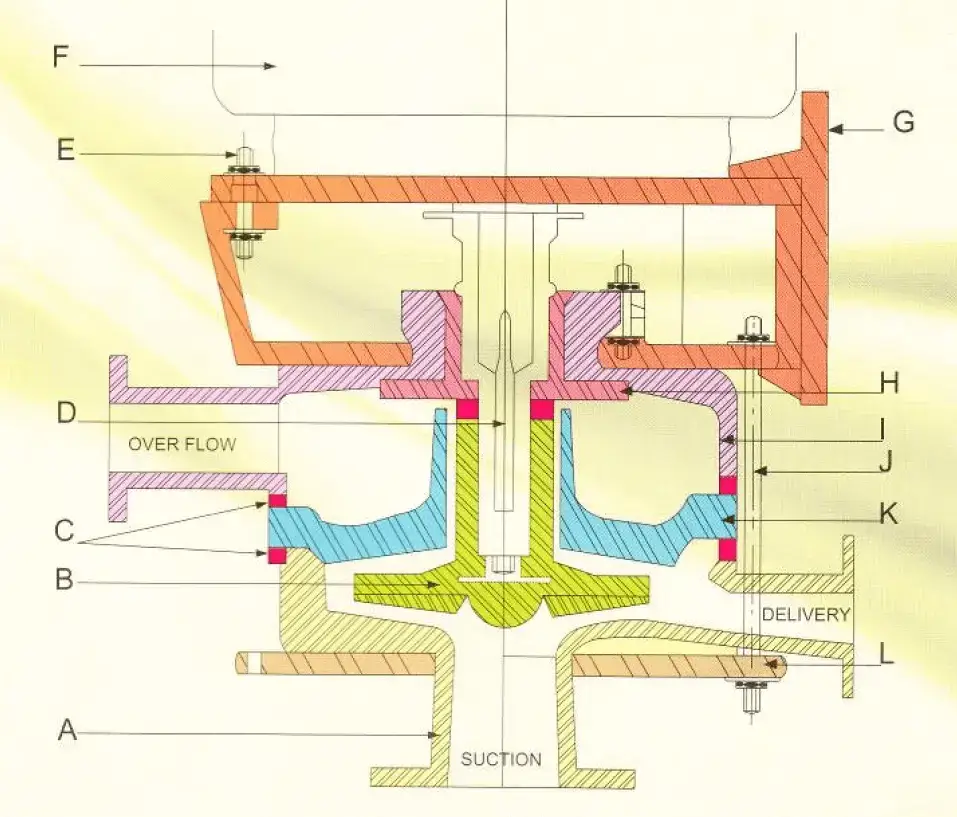

| No. | QTY. | PART NAME | MATERIAL |
|---|---|---|---|
| A | 01 | Lower Casing | UHMW-PE * |
| B | 01 | IMPELLER | UHMW-PE * |
| C | 03 | Gasket | PTFE |
| D | 01 | Shaft External | EN - 24 |
| E | 06 | Hex-Bolt | M.S. |
| F | 01 | Motor | RePUTED mAKE |
| G | 01 | Pump Frame | C.I. |
| H | 01 | EXPELLER | UHMW-PE * |
| I | 01 | Overflow Chamber | UHMW-PE * |
| J | 01 | Hex Stud | SS - 316 |
| K | 04 | Upper Casing | UHMW-PE * |
| L | 01 | Mounting Flange | C.I. |
Unique Features
- It can run dry, without any substantial damage
- Leak proof performance as eliminating usage of mech. Seal/gland packing.
- Zero maintenance.
- Low inventory cost.
- Compact design.
- The only substitute for submerged/submersible/self priming horizontal pumps.
- Reduction in down time production losses.
